MP-AFP PISTOL High-Frequency Poker with Pistol

Vibration > Internal. High frequency

Poker

Product Data Sheet 01 Manual 01-4

Do you have any questions about MP-AFP PISTOL

Consult our specialists in Vibration

INTENSIVE WORK
ERGONOMIC
HORIZONTAL WORK
IP67 PROTECTION

Customize MP-AFP PISTOL

MP38 AFP MPV38 AFP MP5 AFP MPV5 AFP MP6 AFP MPV6 AFP MP7 AFP MP38 AFP MP5 AFP MP6 AFP MP7 AFP MP3 AFP

DIAMETER
- 30 mm
- 38 mm
- 50 mm
- 58 mm
- 65 mm
RUBBER TIP
- No
- Yes
VAS SYSTEM
- No
- Si
- Yes

Optional accessories

Extension cord 5m.

Extension cord 5m

Extension cord 10m.

Extension cord 10m

Extension cord 20m.

Extension cord 20m

Extension cord 25m.

Extension cord 25m

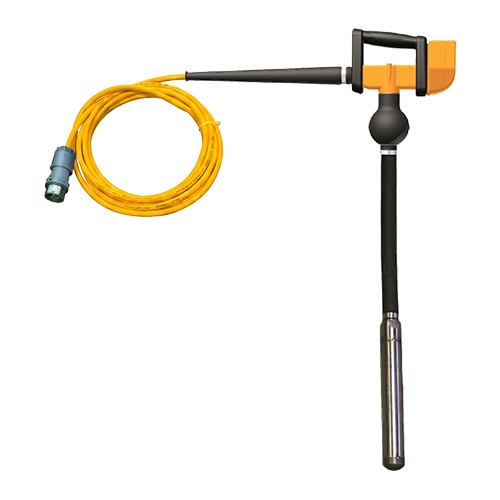

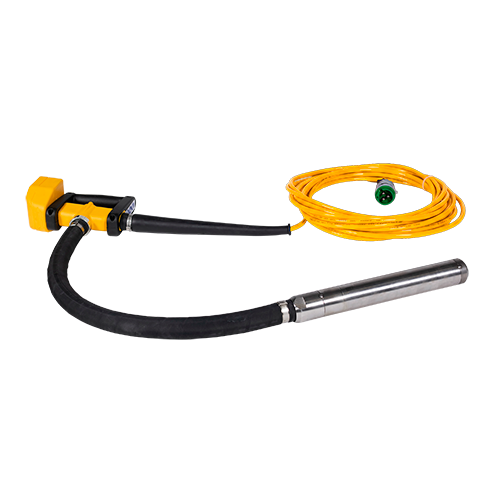

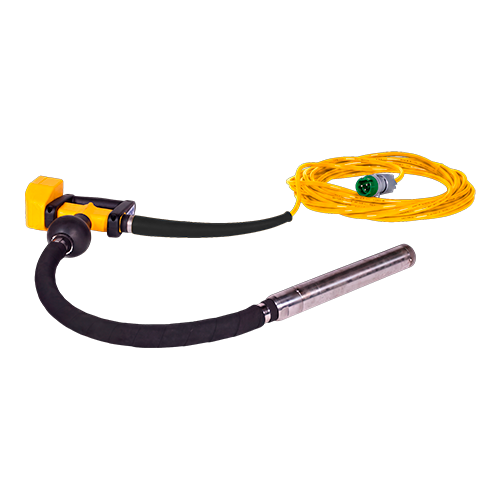

High-Frequency Poker MP-AFP with Pistol

MP-AFP pistol grip vibrators offer the same features as the 42V M-AFP range with the added advantage of a pistol grip control, ideal for horizontal work.

Watertight and abrasion-resistant switch box.
Various diameters.
Optimal frequency and amplitude.
Integrated double-position switch on the handle.
Current input protection against overheating.
Under normal use conditions, it requires no maintenance.

Technical characteristics

	MP38 AFP	MPV38 AFP	MP5 AFP	MPV5 AFP	MP6 AFP	MPV6 AFP	MP7 AFP	MP38 AFP	MP5 AFP	MP6 AFP	MP7 AFP	MP3 AFP
CENTRIFUGAL FORCE	150 kg	150 kg	330 kg	330 kg	560 kg	560 kg	700 kg	150 kg	330 kg	560 kg	700 kg	120 KG
DIAMETER	38 mm	38 mm	50 mm	50 mm	58 mm	58 mm	65 mm	38 mm	50 mm	58 mm	65 mm	30 mm
FREQUENCY	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz	200 Hz
INTENSITY	8 AMP	8 AMP	10,5 AMP	10,5 AMP	13 AMP	15 AMP	22 AMP	8 AMP	10,5 AMP	15 AMP	22 AMP	3,5 AMP
LENGTH	370 mm	370 mm	365 mm	365 mm	403 mm	403 mm	365 mm	370 mm	365 mm	403 mm	365 mm	353 MM
PERFORMANCE (m³/h)	20	20	30	30	35	35	40	20	30	35	40	12
PRODUCT	MP38 AFP	MPV38 AFP	MP5 AFP	MPV5 AFP	MP6 AFP	MPV6AFP	MP7 AFP	MP38 AFP	MP5 AFP	MP6 AFP	MP7 AFP	MP3 AFP
REVOLUTIONS (r.p.m)	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12000	12.000
RUBBER TIP	No	No	No	No	No	No	No	Yes	Yes	Yes	Yes	No
VAS SYSTEM	No	Si	No	Yes	No	Yes	No	No	No	No	No	No
VOLTAGE	42 V	42 V	42 V	42 V	42 V	42 V	42 V	42 V	42 V	42 V	42 V	42 V
WEIGHT	8 kg	8 kg	10 kg	10 kg	13 kg	13 kg	15 kg	8 kg	10 kg	13 kg	15 kg	6,5 kg

Benefits

INTENSIVE WORK

Provides more powerful and stable vibration than mechanical vibrators, making it an ideal choice for intensive jobs.

ERGONOMIC

The pistol grip handle provides excellent ergonomics and handling for the user, designed for high mobility in the work area.

HORIZONTAL WORK

Suitable for horizontal work, thanks to its pistol grip handle.

IP67 PROTECTION

Fully protected against rain and dust.
