i-SPYDER High-Frequency Electronic Converter

Vibration > Internal - High frequency

Integrated

i-SPYDER. High-Frequency Electronic Converter

Product Data Sheet 01 Manual 02

Do you have any questions about i-SPYDER

Consult our specialists in Vibration

PLUG AND PLAY
ZERO MAINTENANCE
COMPACT AND LIGHTWEIGHT
SAFE AND RELIABLE

Customize i-SPYDER

i-SPYDER 1V 38 B i-SPYDER 1V 50 B i-SPYDER 1V 60 B i-SPYDER 2V 38 B i-SPYDER 2V 50 B i-SPYDER 2V 60 B i-SPYDER 2V 70 B i-SPYDER 1V 38 S i-SPYDER 1V 50 S i-SPYDER 1V 60 S i-SPYDER 2V 38 S i-SPYDER 2V 50 S i-SPYDER 2V 60 S i-SPYDER 2V 70 S i-SPYDER 2V 38 B G i-SPYDER 2V 50 B G i-SPYDER 2V 60 B G i-SPYDER 2V 70 B G i-SPYDER 2V 38 S G i-SPYDER 2V 50 S G i-SPYDER 2V 60 S G i-SPYDER 2V 70 S G i-SPYDER 2V 38 B + PRCD i-SPYDER 2V 70 B + PRCD i-SPYDER 2V 38 S + PRCD i-SPYDER 2V 50 S + PRCD i-SPYDER 2V 70 S + PRCD

DIAMETER
- 38 mm
- 50 mm
- 58 mm
- 65 mm
SWITCH
- Button
- Switch
VOLTAGE
- 115 V
- 230 V

High-Frequency Electronic Converter i-SPYDER

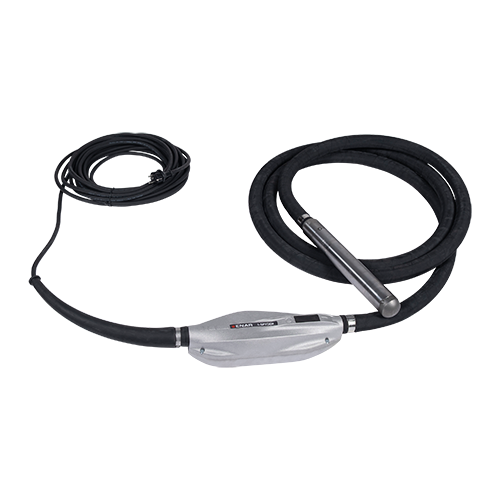

The i-SPYDER is an integrated electronic converter that powers a high-frequency vibrator, a perfect plug and play solution.

Protection against voltage fluctuations.
Ergonomic frame.
15m cable.

Technical characteristics

	i-SPYDER 1V 38 B	i-SPYDER 1V 50 B	i-SPYDER 1V 60 B	i-SPYDER 2V 38 B	i-SPYDER 2V 50 B	i-SPYDER 2V 60 B	i-SPYDER 2V 70 B	i-SPYDER 1V 38 S	i-SPYDER 1V 50 S	i-SPYDER 1V 60 S	i-SPYDER 2V 38 S	i-SPYDER 2V 50 S	i-SPYDER 2V 60 S	i-SPYDER 2V 70 S	i-SPYDER 2V 38 B G	i-SPYDER 2V 50 B G	i-SPYDER 2V 60 B G	i-SPYDER 2V 70 B G	i-SPYDER 2V 38 S G	i-SPYDER 2V 50 S G	i-SPYDER 2V 60 S G	i-SPYDER 2V 70 S G	i-SPYDER 2V 38 B + PRCD	i-SPYDER 2V 70 B + PRCD	i-SPYDER 2V 38 S + PRCD	i-SPYDER 2V 50 S + PRCD	i-SPYDER 2V 70 S + PRCD
DIAMETER	38 mm	50 mm	58 mm	38 mm	50 mm	58 mm	65 mm	38 mm	50 mm	58 mm	38 mm	50 mm	58 mm	65 mm	38 mm	50 mm	58 mm	65 mm	38 mm	50 mm	58 mm	65 mm	38 mm	65 mm	38 mm	50 mm	65 mm
LENGTH	370 mm	365 mm	400 mm	370 mm	365 mm	400 mm	412 mm	370 mm	365 mm	400 mm	370 mm	365 mm	400 mm	365 mm	370 mm	365 mm	403 mm	365 mm	370 mm	365 mm	403 mm	365 mm	370 mm	365 mm	370 mm	365 mm	365 mm
PERFORMANCE (m³/h)	20	30	35	20	30	35	40	20	30	35	20	30	35	40	20	30	35	40	20	30	35	40	20	40	20	30	40
POWER	580 W	850 W	1000 W	580 W	850 W	1000 W	1500 W	580 W	850 W	1000 W	580 W	850 W	1000 W	1500 W	580 W	850 W	1000 W	1500 W	580 W	850 W	1000 W	1500 W	580 W	1500 W	580 W	850 W	1500 W
SWITCH	Button	Button	Button	Button	Button	Button	Button	Switch	Switch	Switch	Switch	Switch	Switch	Switch	Button	Button	Button	Button	Switch	Switch	Switch	Switch	Button	Button	Switch	Switch	Switch
VOLTAGE	115 V	115 V	115 V	230 V	230 V	230 V	230 V	115 V	115 V	115 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V	230 V
WEIGHT	13 kg	17 kg	19 kg	13 kg	17 kg	19 kg	20 kg	13 kg	17 kg	19 kg	13 kg	17 kg	19 kg	20 kg	13 kg	17 kg	19 kg	20 kg	13 kg	17 kg	19 kg	20 kg	13	20 kg	13 kg	17 kg	20 kg

Benefits

PLUG AND PLAY

Converter and poker integrated into a ready-to-use unit.

ZERO MAINTENANCE

No need for spare parts. It generates no waste or components requiring periodic maintenance.

COMPACT AND LIGHTWEIGHT

Lightweight and highly maneuverable, making it suitable for use in hard-to-reach places.

SAFE AND RELIABLE

A sealed housing protects it against water and dust (IP67). It is safeguarded against overloads, overvoltage, and short circuits.
