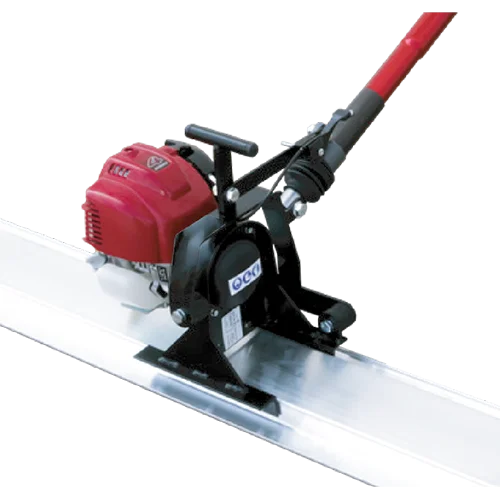

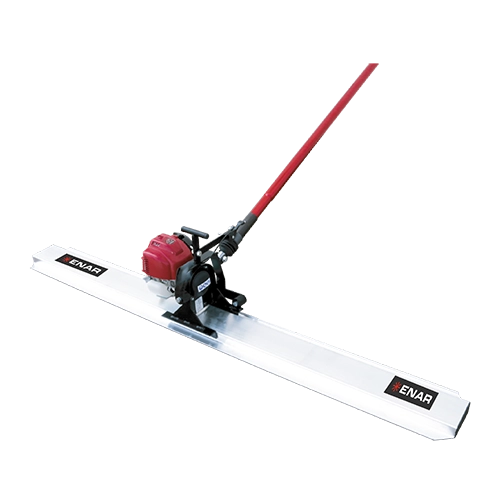

Motor screed QZ Light vibrating motor screed
Motor
.webp)
.webp)
Do you have any questions about Motor screed QZ
Consult our specialists in Finishing
- FULL RANGE
- OSCILLATING PROFILE
- ACCESSIBILITY
- BIDIRECTIONAL
Customize Motor screed QZ
QZ-GH
QZ-ET
QZ-E
-
MOTOR
- ELÉCTRICO 230V 1~
- HONDA GX-25 4T
- VIBRADOR EXTERNO 1~230 V
-
POWER
- 1,1 cv
- 125 W
- 500 W
Light Vibrating Motor Screed QZ
The QZ vibrating screed allows working in both directions thanks to its oscillating system.
- Curved profile for concrete pushing and dragging.
- Available 4-stroke electric and petrol engines.
Technical characteristics
| QZ-GH | QZ-ET | QZ-E | |
|---|---|---|---|
| CENTRIFUGAL FORCE | 1.500 N | 1.300 N | 700 N |
| FREQUENCY | 9.000 vib/min | 12.000 vib/min | 2.850 vib/min |
| LENGTH | 2 - 4 m | 2 - 4 m | 2 - 4 m |
| MOTOR | HONDA GX-25 4T | ELÉCTRICO 230V 1~ | VIBRADOR EXTERNO 1~230 V |
| POWER | 1,1 cv | 500 W | 125 W |
| PRODUCT | QZ-GH | QZ-ET | QZ-E |
| WEIGHT | 17 - 27 kg | 17 - 27 kg | 17 - 27 kg |
Benefits
FULL RANGE
A wide variety of screeds adapted to each customer and need, with different power options.
OSCILLATING PROFILE
By turning the handle, the profile oscillates to achieve the desired slope and change the working direction.
ACCESSIBILITY
Thanks to its design, it allows access to facade edges and pillars, reaching the limit of paving.
BIDIRECTIONAL
The QZ oscillating screed allows working in both directions.
QZ
Light vibrating screed
