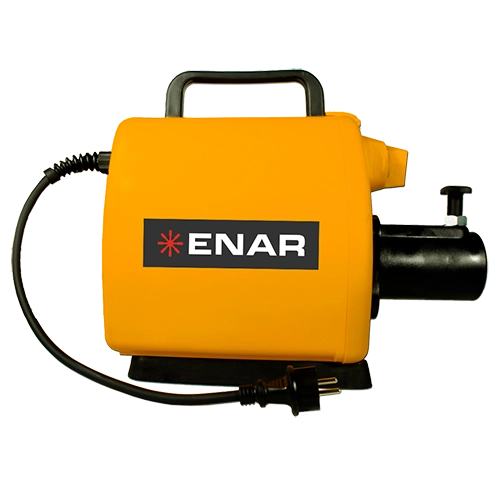

VPA-H Electric Vibrator for Pendulum Poker TNR-H
.webp)
Do you have any questions about VPA-H
Consult our specialists in Vibration
- DURABILITY
- VERSATILITY
- PROTECTIVE HOUSING
- ZERO MAINTENANCE
Customize VPA-H
Motor
Motor VPA-H. Electric Motor for Pendulum Poker TNR-H
VPAM-H 230V
VPAME-H 115V
-
VOLTAGE
- 115V ~ 1
- 230V ~ 1
Shaft and poker
TNR-H + ANR. Pendulum Shaft + Head Poker
TNR-H 6-25 + ANR 25
TNR-H 6-38 + ANR 38
TNR-H 6-48 + ANR 48
TNR-H 6-58 + ANR 58
TNR-H 6-70 + ANR 70
TNR-H 4-25 + ANR 25
TNR-H 4-38 + ANR 38
TNR-H 4-58 + ANR 58
TNR-D 4-70 + ANR 70
-
DIAMETER
- 25 mm
- 38 mm
- 48 mm
- 58 mm
- 70 mm
-
LENGTH
- 4 m
- 6 m
Optional accessories
Hose shaft 3''.
Hose shaft 3''
Single Phase Coupling-D.
Single Phase Coupling-D
Three Phase D Coupling.
Three Phase Coupling-D
Evacuation hose 3'' 20m.
Evacuation hose 3'' 20m
Electric Vibrator VPA for Pendulum Poker TNR-H
The VPA series comprises electric motors for powering pendulum vibrators.
- Three-phase motor with clutch.
- Double insulated motor.
The ANR/TNR range offers a wide variety of pokers and shafts, with various couplings.
- Shaft rotation frequency of 3,000 rpm.
- Pendulum system reaches 12,000 rpm.
- Compatible with electric, diesel, and petrol engines.
Technical characteristics
Motor VPA-H
| VPAM-H 230V | VPAME-H 115V | |
|---|---|---|
| DIMENSIONS | 440 x 190 x 340 mm | 440 x 190 x 340 mm |
| FREQUENCY | 50 Hz | 50 Hz |
| POWER | 1,5 cv | 1,5 cv |
| PRODUCT | VPAM-H 230V | VPAME-H 115V |
| REVOLUTIONS (r.p.m) | 3000 | 3000 |
| VOLTAGE | 230V ~ 1 | 115V ~ 1 |
| WEIGHT | 12 kg | 12 kg |
TNR-H + ANR
| TNR-H 6-25 + ANR 25 | TNR-H 6-38 + ANR 38 | TNR-H 6-48 + ANR 48 | TNR-H 6-58 + ANR 58 | TNR-H 6-70 + ANR 70 | TNR-H 4-25 + ANR 25 | TNR-H 4-38 + ANR 38 | TNR-H 4-58 + ANR 58 | TNR-D 4-70 + ANR 70 | |
|---|---|---|---|---|---|---|---|---|---|
| DIAMETER | 25 mm | 38 mm | 48 mm | 58 mm | 70 mm | 25 mm | 38 mm | 58 mm | 70 mm |
| LENGTH | 6 m | 6 m | 6 m | 6 m | 6 m | 4 m | 4 m | 4 m | 4 m |
| PRODUCT | TNR-H 6-25 + ANR 25 | TNR-H 6-38 + ANR 38 | TNR-H 6-48 + ANR 48 | TNR-H 6-58 + ANR 58 | TNR-H 6-70 + ANR 70 | TNR-H 4-25 + ANR 25 | TNR-H 4-38 + ANR 38 | TNR-H 4-58 + ANR 58 | TNR-H 4-70 + ANR 70 |
Benefits
DURABILITY
High-power, reliable motors that guarantee a long lifespan.
VERSATILITY
The VPA range offers a wide variety of single-phase and three-phase motors.
PROTECTIVE HOUSING
Dual function. Protects the motor from impacts and external elements and is easy to clean from concrete splashes.
ZERO MAINTENANCE
No need for spare parts or regular inspections. It generates no waste.
