FOX-O Electric Eccentric Vibrator

Vibration > Internal - Eccentric

Sets

Product Data Sheet 01-0

Do you have any questions about FOX-O

Consult our specialists in Vibration

ROBUST
BETTER PROTECTED
EASY MAINTENANCE
MANAGEABLE

Customize FOX-O

Motor

FOX-O Motor. Electric Eccentric Vibrator FOX-O 115V

Shaft

Shaft TAX-O. Eccentric Flexible Shaft TAX-O 13 FT TAX-O 16 FT TAX-O 10 FT TAX-O 7 FT TAX-O 20 FT

LENGTH
- 10 FT
- 13 FT
- 16 FT
- 20 FT
- 7 FT

Poker

Poker AX-O. Vibrating Eccentric Head Poker AX-O 1,75'' AX-O 1'' AX-O 1,25'' AX-O 2,25'' AX-O 1,5''

DIAMETER
- 1,25''
- 1,5''
- 1,75''
- 1''
- 2,25''

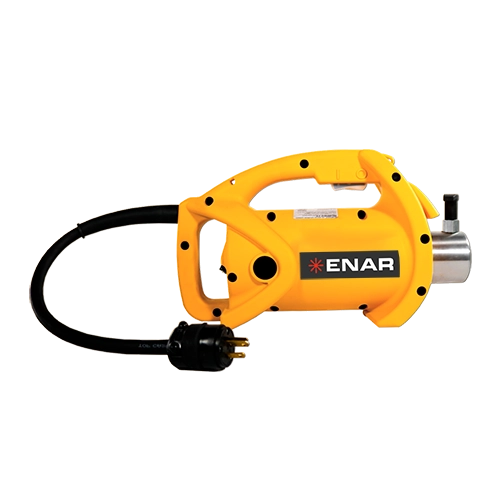

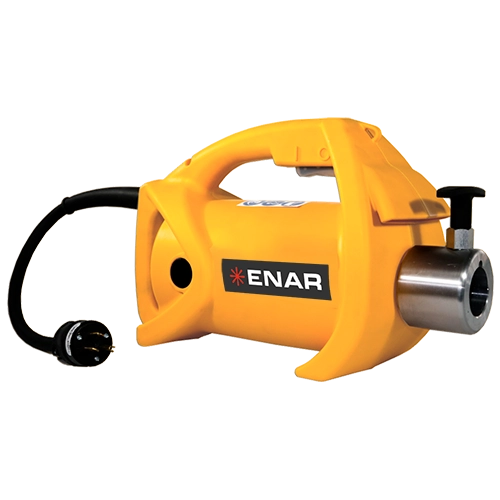

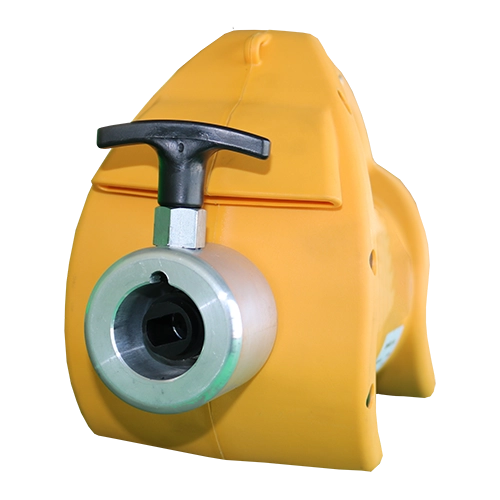

Electric Eccentric Vibrator FOX-O

The FOX is a single-phase portable electric vibrator with an internal frame configuration to support the motor, providing greater stability and precision.

Reinforced connection cable.
High-resistance housing.
Detachable strap.
Scaled motor with double insulation.

The TDX/TAX shaft is a flexible shaft for AX pokers with extra protection at its connection end with the head poker.

Mesh reinforcement and inner steel strip.
Ends reconditioned with reinforcement.

The TDXE / TAXE shaft is for small poker sizes (AX25 and AX32).

The TDX / TAX shaft larger poker sizes (AX40, AX 48 and AX58).

The AX poker is an oversized eccentric poker with a hardened steel tip.

Four oil-lubricated bearings.
Double seal to prevent water leakage.

Technical characteristics

FOX-O Motor

	FOX-O 115V
ASSOCIATED TRANSMISSION	TAX-O
DIMENSIONS	354 X 150 X 216
FREQUENCY	50-60 HZ
POWER	1.800W
REVOLUTIONS (r.p.m)	12.000
VOLTAGE	115 V
WEIGHT	5,8 kg

Shaft TAX-O

	TAX-O 13 FT	TAX-O 16 FT	TAX-O 10 FT	TAX-O 7 FT	TAX-O 20 FT
ASSOCIATED POKER	AX-O	AX-O	AX-O	AX-O	AX-O
LENGTH	13 FT	16 FT	10 FT	7 FT	20 FT
WEIGHT	6kg	7kg	5kg	4kg	8kg

Poker AX-O

	AX-O 1,75''	AX-O 1''	AX-O 1,25''	AX-O 2,25''	AX-O 1,5''
ASSOCIATED TRANSMISSION	TAX-O	TAX-O	TAX-O	TAX-O	TAX-O
DIAMETER	1,75''	1''	1,25''	2,25''	1,5''
LENGTH	325 MM	285 mm	366 MM	344 MM	335 MM
m³/h	25	10	14	35	17
REVOLUTIONS (r.p.m)	9.000	14.000	13.750	12.000	13.500
WEIGHT	3 KG	0,8 kg	1,7 KG	4,5 KG	2,2 KG

FOX Applications

The FOX is ideal for concrete vibration tasks in civil works, building construction, and vertical structures, where precision, durability, and ease of use are essential. Its internal stabilizing cage, reinforced housing, and ergonomic handles make it perfect for medium-intensity environments. Compatible with a wide range of needles and transmissions, it delivers reliable performance and easy maintenance, even under demanding conditions.

Product Data Sheet 01-0

Benefits

ROBUST

The FOX's housing is designed to protect it from impacts, making it more robust and durable.

BETTER PROTECTED

Greater motor protection thanks to its frame, resulting in increased stability and more precise operation.

EASY MAINTENANCE

Brushes with automatic disconnection systems that can be easily replaced from the exterior.

MANAGEABLE

Its primary handle has the integrated switch, and its rear handle facilitates vertical work.
