BACKPACK-O Gasoline-Powered Backpack Vibrator

Vibration > Internal - Eccentric

Sets

BACKPACK-O. Gasoline-Powered Backpack Vibrator

Product Data Sheet 01-O

Do you have any questions about BACKPACK-O

Consult our specialists in Vibration

NO PLUGS
LIGHTWEIGHT
MOBILITY
MANEUVERABILITY

Customize BACKPACK-O

Motor

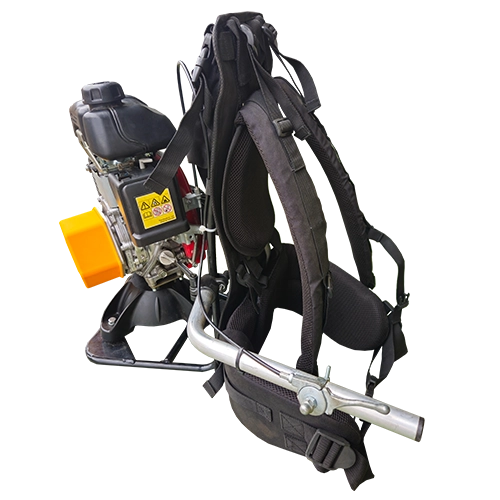

BACKPACK-O. Petrol-Powered backpack motor BACKPACK-O

Shaft

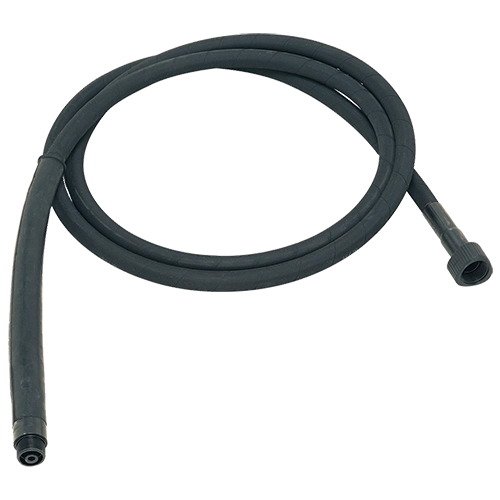

Shaft TAX-O. Eccentric Flexible Shaft TAX-O 13 FT TAX-O 16 FT TAX-O 10 FT TAX-O 7 FT TAX-O 20 FT

LENGTH
- 10 FT
- 13 FT
- 16 FT
- 20 FT
- 7 FT

Poker

Poker AX-O. Vibrating Eccentric Head Poker AX-O 1,75'' AX-O 1'' AX-O 1,25'' AX-O 2,25'' AX-O 1,5''

DIAMETER
- 1,25''
- 1,5''
- 1,75''
- 1''
- 2,25''

Eccentric Electric Vibrator BACKPACK-O

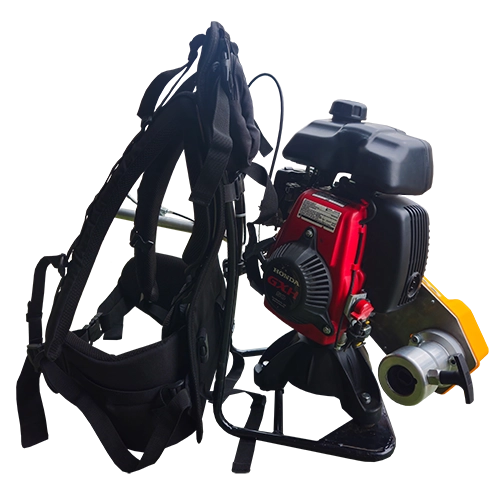

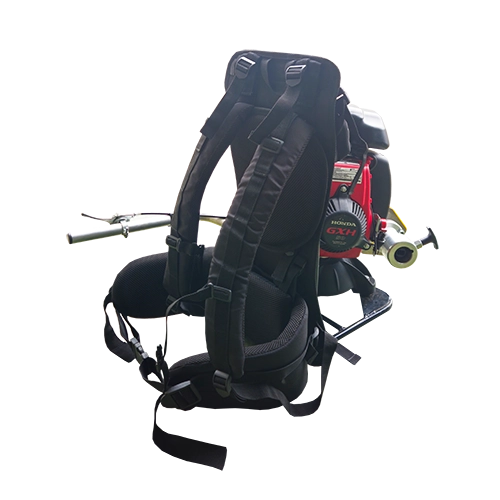

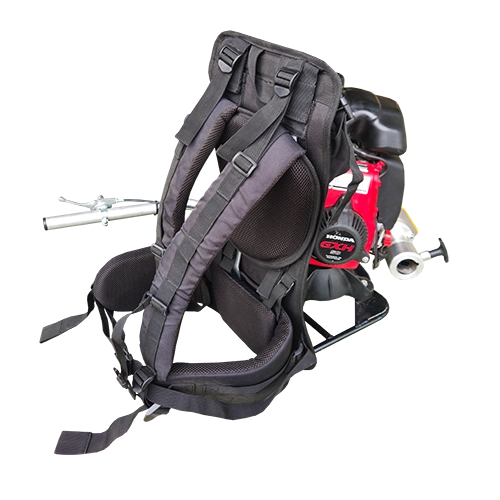

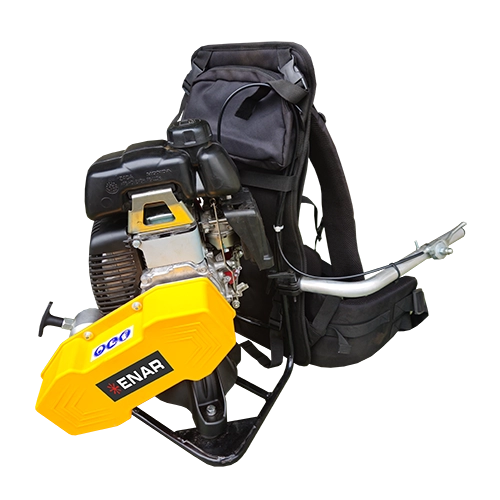

The BACKPACK series consists of a portable vibrator powered by a petrol engine, installed on a backpack support.

Centrifugal clutch.
Easy shaft connection.
Ergonomic and comfortable backpack support.
Belt strap for easy carrying.

The TDX shaft is a flexible shaft for AX poker with extra protection at its connection end with the poker.

Mesh reinforcement and inner steel strip.
Ends reconditioned with reinforcement.

The TDXE shaft is for small poker sizes (AX25 and AX32).

The TDX shaft larger poker sizes (AX40, AX 48 and AX58).

The AX poker is an oversized eccentric poker with a hardened steel tip.

Four oil-lubricated bearings.
Double seal to prevent water leakage.

Technical characteristics

BACKPACK-O

	BACKPACK-O
CYLINDER CAPACITY	12.000 rpm
FUEL	Petrol
MOTOR	HONDA GXH50
POWER	2.1 HP
WEIGHT	13 KG

Shaft TAX-O

	TAX-O 13 FT	TAX-O 16 FT	TAX-O 10 FT	TAX-O 7 FT	TAX-O 20 FT
ASSOCIATED POKER	AX-O	AX-O	AX-O	AX-O	AX-O
LENGTH	13 FT	16 FT	10 FT	7 FT	20 FT
WEIGHT	6kg	7kg	5kg	4kg	8kg

Poker AX-O

	AX-O 1,75''	AX-O 1''	AX-O 1,25''	AX-O 2,25''	AX-O 1,5''
ASSOCIATED TRANSMISSION	TAX-O	TAX-O	TAX-O	TAX-O	TAX-O
DIAMETER	1,75''	1''	1,25''	2,25''	1,5''
LENGTH	325 MM	285 mm	366 MM	344 MM	335 MM
m³/h	25	10	14	35	17
REVOLUTIONS (r.p.m)	9.000	14.000	13.750	12.000	13.500
WEIGHT	3 KG	0,8 kg	1,7 KG	4,5 KG	2,2 KG

BACKPACK-O Applications

BACKPACK is a portable solution for internal concrete vibration on sites without electrical access. Its backpack-style format allows users to work with freedom of movement and high comfort, even during extended tasks. It’s a tool designed for professionals who require autonomy, comfort, and efficiency in any job site environment.

Product Data Sheet 01-O

Benefits

NO PLUGS

The BACKPACK is powered by a petrol engine. It doesn't require an electric supply, which enhances safety at the jobsite.

LIGHTWEIGHT

Thanks to the lightweight motor unit and ergonomic support, it offers great comfort to the user.

MOBILITY

Ideal forjobsites without electric supply, allowing for great user mobility.

MANEUVERABILITY

The throttle and stop button are integrated into the handle, making it easy to operate.
