QX Light Vibrating Screed
Sets
.webp)
Do you have any questions about QX
Consult our specialists in Finishing
- COST-EFFECTIVENESS
- STURDINESS
- LIGHT AND MANEUVERABLE
- FULL RANGE
Customize QX
Motor
Motor Screed QX . Light Vibrating Motor Screed
QX-H
QX-E TURBO 230V
QX-E TURBO 115V
QX-E
-
MOTOR
- ELÉCTRICO 115V 1~
- ELÉCTRICO 230V 1~
- HONDA GX-25 4T
- VIBRADOR EXTERNO 1~230 V
Screed Blade
Screed Blade QX / TORNADO.
Screed Blade 1,5m QX - TORNADO
Screed Blade 2m QX – TORNADO
Screed Blade 2,5m QX – TORNADO
Screed Blade 3m QX – TORNADO
Screed Blade 4m QX – TORNADO
-
LENGTH
- 1,5 m
- 2 m
- 2,5 m
- 3 m
- 4 m

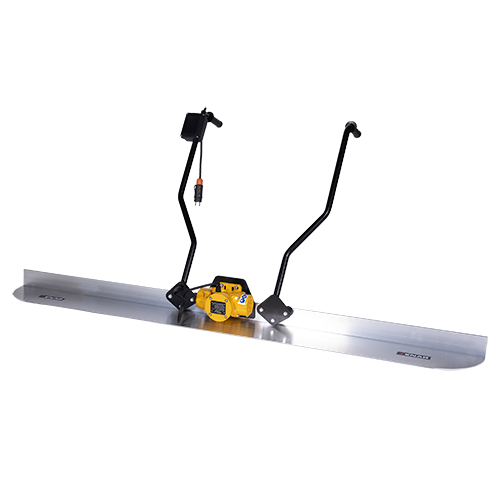

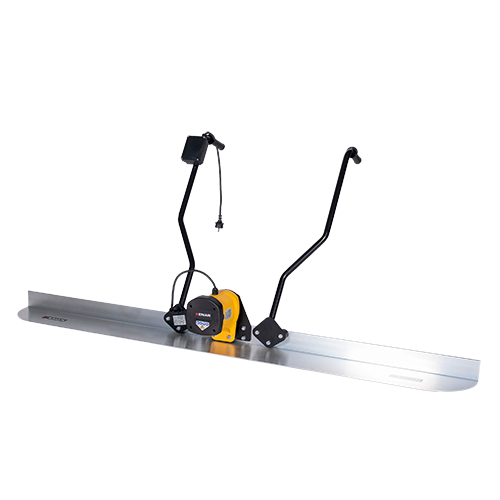

Light Vibrating Screed QX
The QX screeds are known for their extraordinary lightness combined with high performance and cost-effectiveness.
- Perfect finish for the concrete surface.
High-strength aluminum screed bar with rounded edges and a 200mm profile base to achieve good buoyancy.
- Strict profile flatness control.
Technical characteristics
Motor Screed QX
| QX-H | QX-E TURBO 230V | QX-E TURBO 115V | QX-E | |
|---|---|---|---|---|
| CENTRIFUGAL FORCE | 1.500 N | 1.300 N | 1.300 N | 700 |
| FREQUENCY | 9.000 vib/min | 12.000 vib/min | 12.000 vib/min | 3.000 vib/min |
| FUEL | Petrol | Electric | Electric | Electric |
| LENGTH | 1,5 - 4 m | 1,5 - 4 m | 1,5 - 4 m | 1,5 - 4 m |
| MOTOR | HONDA GX-25 4T | ELÉCTRICO 230V 1~ | ELÉCTRICO 115V 1~ | VIBRADOR EXTERNO 1~230 V |
| POWER | 1,1 cv | 500 W | 500 W | 125 W |
| PRODUCT | QX-H | QX-E TURBO 230V | QX-E TURBO 115V | QX-E |
| WEIGHT | 14,5 - 22 kg | 14,5 - 22 kg | 14,5 - 22 kg | 13,5 - 21 kg |
Screed Blade QX / TORNADO
| Screed Blade 1,5m QX - TORNADO | Screed Blade 2m QX – TORNADO | Screed Blade 2,5m QX – TORNADO | Screed Blade 3m QX – TORNADO | Screed Blade 4m QX – TORNADO | |
|---|---|---|---|---|---|
| LENGTH | 1,5 m | 2 m | 2,5 m | 3 m | 4 m |
| WEIGHT | 4,6 kg | 6,2 kg | 7,8 kg | 9,3 kg | 12,4 kg |
QX Applications
The QX is ideal for vibrating concrete in jobs that require lightness, efficiency, and a smooth finish, such as exposed cement paving. Its robust and easy-to-handle design allows a single operator to work comfortably, optimizing time and resources on site.
Benefits
COST-EFFECTIVENESS
It's a perfect value-for-money option, considering the performance it offers.
STURDINESS
The QX vibrating screed has few parts prone to breakage, making it a very robust product.
LIGHT AND MANEUVERABLE
It can be operated by a single worker, making it easy to transport and work with.
FULL RANGE
A wide variety of screeds adapted to each customer and need, with different engine types.
