VG-A Vibrator for Pendulum Poker TNR-A
Do you have any questions about VG-A
Consult our specialists in Vibration
- PERFORMANCE
- NO PLUGS
- DURABLE
- WIDE RANGE
Customize VG-A
Motor
Motor VG-A. Engine for Pendulum Poker TNR-A
VYD-A
VGE 5 A
-
FUEL
- Diesel
- Petrol
-
MOTOR
- ENAR G200
- YAMMAR L48
Shaft
TNR-A. Pendulum Shaft
TNR A 9-38
TNR A 9-58
TNR A 6-38
TNR A 9-48
TNR A 6-58
TNR A 6-48
-
DIAMETER
- 38 MM
- 48 MM
- 58 MM
-
LENGTH
- 6 M
- 9 M
Poker

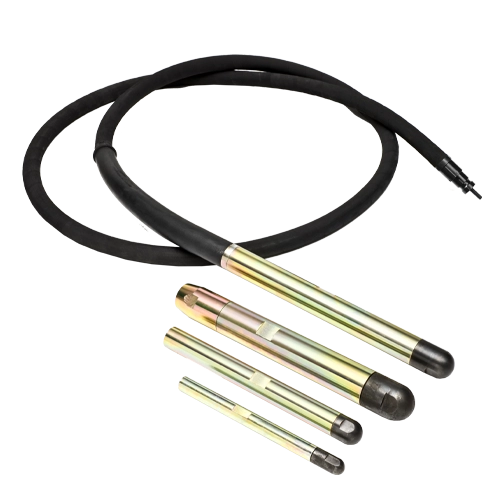

ANR . Vibrating pendulum head poker
ANR 25
ANR 38
ANR 48
ANR 58
ANR 70
-
DIAMETER
- 25 mm
- 38 mm
- 48 mm
- 58 mm
- 70 mm
Shaft and poker
TNR-A + ANR. Pendulum Shaft + Head Poker
TNR A 6-38
TNR A 6-48
TNR A 6-58
-
DIAMETER
- 38 MM
- 48 MM
- 58 MM
-
LENGTH
- 6 M
Optional accessories
Hose shaft 3''.
Hose shaft 3''
Evacuation hose 3'' 20m.
Evacuation hose 3'' 20m
Vibrator VG for Pendulum Vibrator TNR-A
The VG series includes petrol and diesel engines to power pendulum vibrators.
- Oil level control system.
- Sturdy steel frame that protects the engine from impacts.
The ANR/TNR range offers a wide variety of pokers and shafts , with various couplings.
- Shaft rotation frequency of 3,000 rpm.
- Pendulum system reaches 12,000 vpm.
- Compatible with electric, diesel, and petrol engines.
Technical characteristics
Motor VG-A
| VYD-A | VGE 5 A | |
|---|---|---|
| FUEL | Diesel | Petrol |
| MOTOR | YAMMAR L48 | ENAR G200 |
| POWER | 4,7 CV | 5.5 cv |
| PRODUCT | VYD-A | VGE |
| WEIGHT | 32KG | 19 kg |
TNR-A
| TNR A 9-38 | TNR A 9-58 | TNR A 6-38 | TNR A 9-48 | TNR A 6-58 | TNR A 6-48 | |
|---|---|---|---|---|---|---|
| ASSOCIATED POKER | ANR 38 | ANR 58 | ANR 38 | ANR 48 | ANR 58 | ANR 48 |
| DIAMETER | 38 MM | 58 MM | 38 MM | 48 MM | 58 MM | 48 MM |
| LENGTH | 9 M | 9 M | 6 M | 9 M | 6 M | 6 M |
| WEIGHT | 16 KG | 16 KG | 16 KG |
ANR
| ANR 25 | ANR 38 | ANR 48 | ANR 58 | ANR 70 | |
|---|---|---|---|---|---|
| ASSOCIATED TRANSMISSION | TNR-25 | TNR-38 | TNR-48 | TNR-58 | TNR-70 |
| DIAMETER | 25 mm | 38 mm | 48 mm | 58 mm | 70 mm |
| LENGTH | 350 mm | 375 mm | 445 mm | 450 mm | 510 mm |
| PERFORMANCE (m³/h) | 10 | 15 | 25 | 32 | 35 |
| REVOLUTIONS (r.p.m) | 17.000 | 12.000 | 12.000 | 12.000 | 12.000 |
| WEIGHT | 1,2 kg | 2,5 kg | 3,5 kg | 6 kg | 7,5 kg |
TNR-A + ANR
| TNR A 6-38 | TNR A 6-48 | TNR A 6-58 | |
|---|---|---|---|
| DIAMETER | 38 MM | 48 MM | 58 MM |
| LENGTH | 6 M | 6 M | 6 M |
| PRODUCT | TNR A 6-38 + ANR 38 | TNR A 6-48 + ANR 48 | TNR A 6-58 + ANR 58 |
Benefits
PERFORMANCE
High-power, reliable engines that ensure excellent vibration performance.
NO PLUGS
The VG range is ideal for jobsites without electrical power supply.
DURABLE
Sturdy frame for added engine protection and easy transport.
WIDE RANGE
Diesel or petrol engines available based on customer requirements.
