TNR-A + ANR Pendulum Shaft and Head Poker
Do you have any questions about TNR-A + ANR
Consult our specialists in Vibration
- ADAPTABILITY
- VERSATILITY
- STRENGTH
Customize TNR-A + ANR
Shaft
TNR-A. Pendulum Shaft
TNR A 9-38
TNR A 9-58
TNR A 6-38
TNR A 9-48
TNR A 6-58
TNR A 6-48
-
DIAMETER
- 38 MM
- 48 MM
- 58 MM
-
LENGTH
- 6 M
- 9 M
Poker

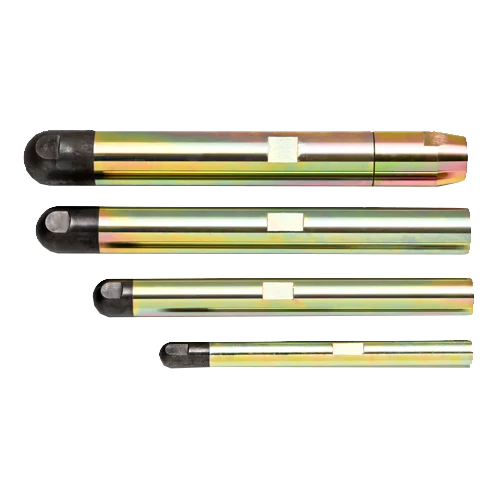

ANR . Vibrating pendulum head poker
ANR 25
ANR 38
ANR 48
ANR 58
ANR 70
-
DIAMETER
- 25 mm
- 38 mm
- 48 mm
- 58 mm
- 70 mm
Shaft and poker
TNR-A + ANR. Pendulum Shaft + Head Poker
TNR A 6-38
TNR A 6-48
TNR A 6-58
-
DIAMETER
- 38 MM
- 48 MM
- 58 MM
-
LENGTH
- 6 M
Pendulum Shaft TNR-A and Head Poker ANR
The ANR/TNR range offers a wide variety of pokers and shafts , with various couplings.
- Shaft rotation frequency of 3,000 rpm.
- Pendulum system reaches 12,000 rpm.
- Compatible with electric, diesel, and petrol engines.
Technical characteristics
TNR-A
| TNR A 9-38 | TNR A 9-58 | TNR A 6-38 | TNR A 9-48 | TNR A 6-58 | TNR A 6-48 | |
|---|---|---|---|---|---|---|
| ASSOCIATED POKER | ANR 38 | ANR 58 | ANR 38 | ANR 48 | ANR 58 | ANR 48 |
| DIAMETER | 38 MM | 58 MM | 38 MM | 48 MM | 58 MM | 48 MM |
| LENGTH | 9 M | 9 M | 6 M | 9 M | 6 M | 6 M |
| WEIGHT | 16 KG | 16 KG | 16 KG |
ANR
| ANR 25 | ANR 38 | ANR 48 | ANR 58 | ANR 70 | |
|---|---|---|---|---|---|
| ASSOCIATED TRANSMISSION | TNR-25 | TNR-38 | TNR-48 | TNR-58 | TNR-70 |
| DIAMETER | 25 mm | 38 mm | 48 mm | 58 mm | 70 mm |
| LENGTH | 350 mm | 375 mm | 445 mm | 450 mm | 510 mm |
| m³/h | 10 | 15 | 25 | 32 | 35 |
| REVOLUTIONS (r.p.m) | 17.000 | 12.000 | 12.000 | 12.000 | 12.000 |
| WEIGHT | 1,2 kg | 2,5 kg | 3,5 kg | 6 kg | 7,5 kg |
TNR-A + ANR
| TNR A 6-38 | TNR A 6-48 | TNR A 6-58 | |
|---|---|---|---|
| DIAMETER | 38 MM | 48 MM | 58 MM |
| LENGTH | 6 M | 6 M | 6 M |
| PRODUCT | TNR A 6-38 + ANR 38 | TNR A 6-48 + ANR 48 | TNR A 6-58 + ANR 58 |
Benefits
ADAPTABILITY
The ANR/TNR range is suitable for all types of jobsites, thanks to its compatibility with electric, petrol, or diesel engines.
VERSATILITY
The shafts and pokers come in a wide range of diameters and couplings, accommodating various user needs.
STRENGTH
The ANR/TNR range incorporates rubber reinforcement in the area of highest stress. Robust mechanical system design.
