ZEN-L Single-direction vibratory plate

Compaction > Single Direction Plate

Single direction plate

Product Data Sheet 01 Manual ZEN-L

Do you have any questions about ZEN-L

Consult our specialists in Compaction

AIR FILTER
ROBUSTNESS
LOW HAND-ARM VIBRATIONS
ERGONOMICS

Customize ZEN-L

ZEN-L 12W ZEN-L 12 ZEN-L 15W ZEN-L 15 ZEN-L 20W ZEN-L 20 ZEN-L 12GH ZEN-L 12GHW ZEN-L 15GH ZEN-L 15GHW ZEN-L 20GH ZEN-L 20GHW

CENTRIFUGAL FORCE
- 12 kN
- 15 kN
- 20 kN
MOTOR
- ENAR G210FA
- HONDA GX160
WATER TANK
- No
- Yes

Optional accessories

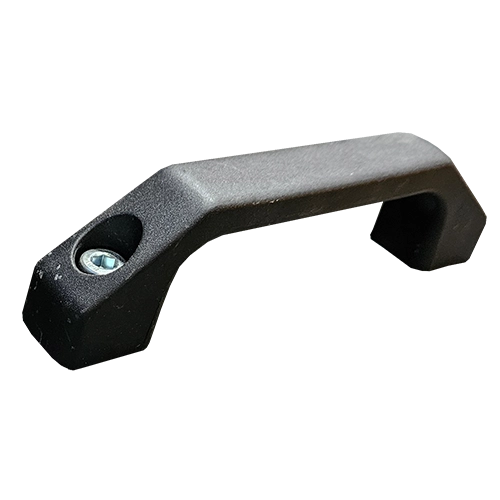

LIFTING HANDLE KIT (4 UNITS).

LIFTING HANDLE KIT (4 UNITS)

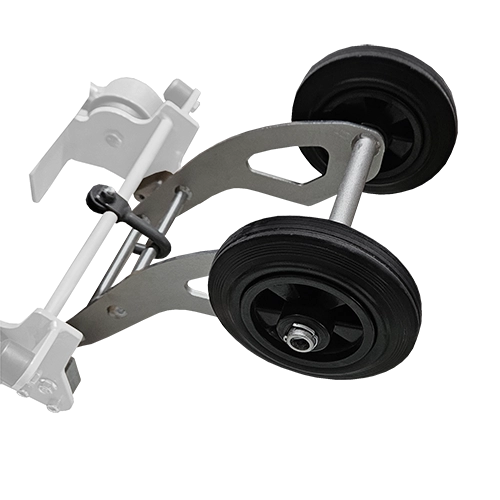

ZEN WHEEL KIT.

ZEN WHEEL KIT

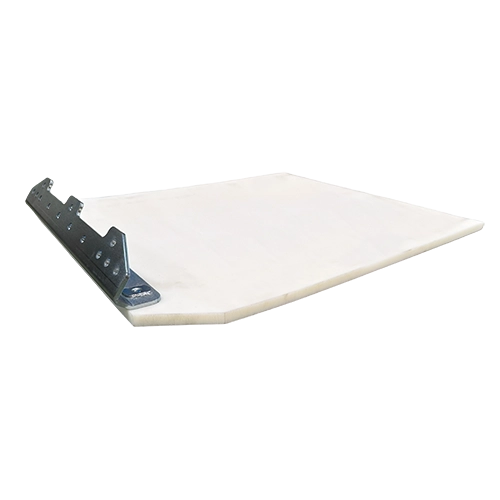

Set protection VULKOLLAN.

VULKOLLAN

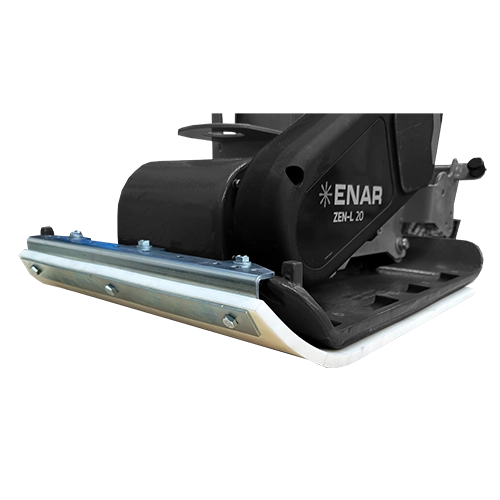

Single-direction vibratory plate ZEN-L

The new ZEN-L range from ENAR offers a wide variety of single direction vibratory plates with models going from 63 to 92 kg. Their compact design allows for compaction of mixed soils in the narrowest of spaces even in extremely narrow trenches.

Wheel kit and water tank (W models) come as option.
350mm and 500mm wide plates available.
Vibration frequency: 5,800 vib/min.
Recommended for working in asphalt and light mixed soils as well as for the vibration interlocking paving stones.

Technical characteristics

	ZEN-L 12W	ZEN-L 12	ZEN-L 15W	ZEN-L 15	ZEN-L 20W	ZEN-L 20	ZEN-L 12GH	ZEN-L 12GHW	ZEN-L 15GH	ZEN-L 15GHW	ZEN-L 20GH	ZEN-L 20GHW
CENTRIFUGAL FORCE	12 kN	12 kN	15 kN	15 kN	20 kN	20 kN	12 kN	12 kN	15 kN	15 kN	20 kN	20 kN
DIMENSIONS	350 x 520 x 820	350 x 520 x 820	500 x 588 x 940	500 x 588 x 940	500 x 588 x 940	500 x 588 x 940	350 x 520 x 820	350 x 520 x 820	500 x 588 x 940	500 x 588 x 940	500 x 588 x 940	500 x 588 x 940
MOTOR	ENAR G210FA	ENAR G210FA	ENAR G210FA	ENAR G210FA	ENAR G210FA	ENAR G210FA	HONDA GX160	HONDA GX160	HONDA GX160	HONDA GX160	HONDA GX160	HONDA GX160
Vibration speed (v.p.m.)	5.800	5.800	5.800	5.800	5.800	5.800	5.800	5.800	5.800	5.800	5.800	5.800
WATER TANK	Yes	No	Yes	No	Yes	No	No	Yes	No	Yes	No	Yes
WEIGHT	65 Kg	63 kg	85 kg	83 kg	92 kg	92 kg	63 kg	65 Kg	83 kg	85 kg	90 kg	92 kg

ZEN-L Applications

The ZEN-L Unidirectional Vibratory Plate is ideal for compacting asphalt, light mixed soils, and paving stones in small or hard-to-reach spaces, such as narrow trenches. Its compact design, range of plate widths, and transport options make it the perfect solution for urban works and light paving jobs.
