Do you have any questions about VEAF
Consult our specialists in Vibration
- DURABLE
- IP65 PROTECTION
- ADJUSTABLE FORCE
- QUICK COUPLING
Customize VEAF
VEAF 650 230V
VEAF 650 42V
-
SPYDER INCLUDED
- No
- Yes
-
SWITCH
- No
-
VOLTAGE
- 230 V
- 42 V
Optional accessories
Screw kit 12 mm.
Screw kit 12 mm
Quick coupling.
Quick coupling
Flat quick coupling.
Flat quick coupling

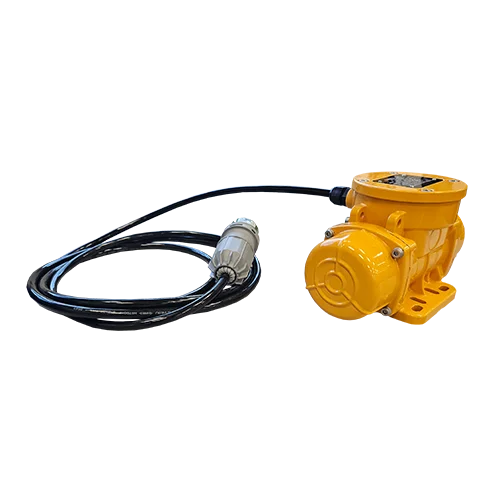

High-Frequency External Vibrator VEAF
The VEAF range of high-frequency external vibrators at 6,000 rpm is the ideal choice for formwork, with superior performance.
- Bearings lubricated with high-durability grease.
- Electric motors made with low-loss laminations.
Technical characteristics
VEAF 650 230V | VEAF 650 42V | |
---|---|---|
CENTRIFUGAL FORCE | 0-650 KG | 0 - 650 kg |
DIAMETER (G) | 9 mm | 12,5 mm |
DISTANCE (A) | 90 mm | 90 mm |
DISTANCE (B) | 125 mm | 125 mm |
LENGTH (C) | 260 mm | 260 mm |
MAX. CONSUMPTION | 600 W | 600 W |
REVOLUTIONS (r.p.m) | 6.000 | 6.000 |
SPYDER INCLUDED | Yes | No |
SWITCH | No | No |
VOLTAGE | 230 V | 42 V |
WEIGHT | 14 kg | 8,2 kg |
WIDE (D) | 160 mm | 160 mm |
Benefits
DURABLE
High-strength aluminum housing for a long life in tough working conditions.
IP65 PROTECTION
Hermetic sealed housing that protects the equipment from external agents such as dust and rain.
ADJUSTABLE FORCE
Multiple models with adjustable eccentric force allow for a wide range of needs (from 100kg to 1500kg).
QUICK COUPLING
Optional jaws compatible with various formworks, saving time during assembly and operation.
